Self Loading All-in-One Stacker Fully Electric Lifting Capacity 500Kg, 1.3m Lifting Height PNXFESLS-0513 - Pronix

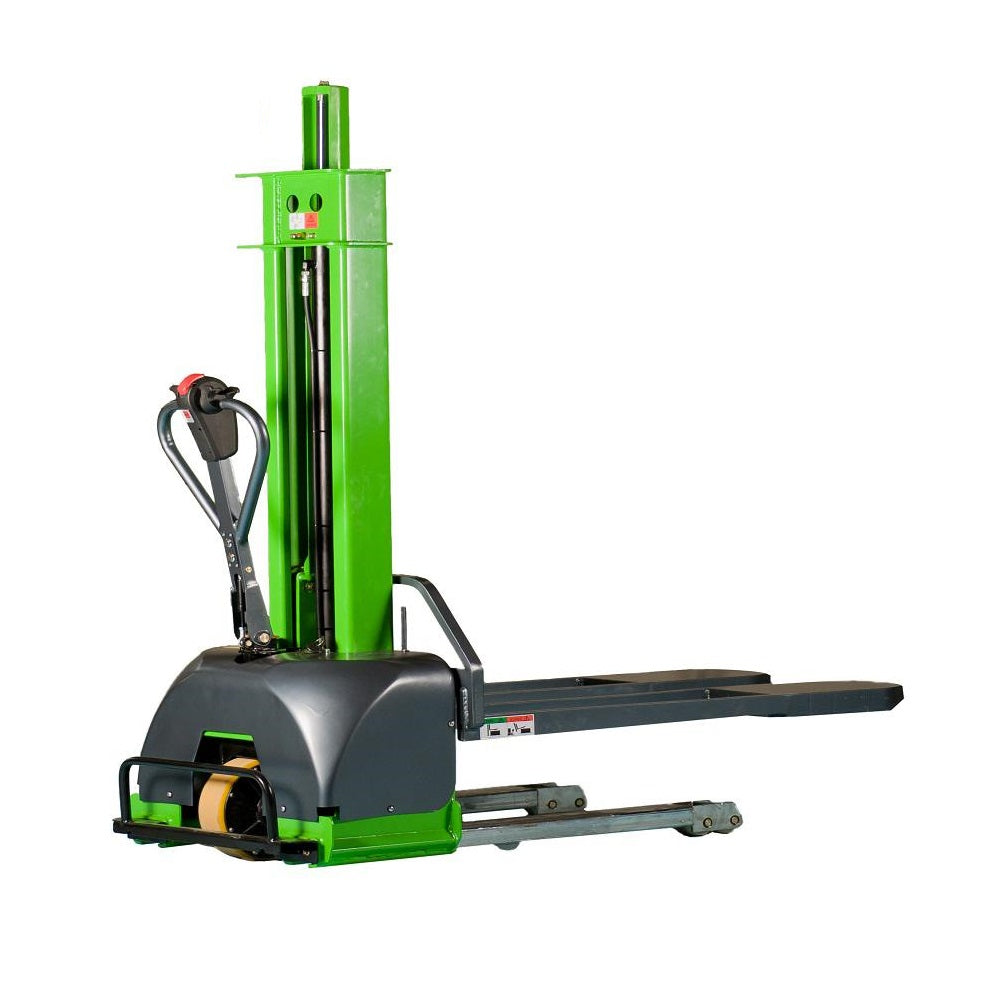

The Pronix Fully Electric Self Loading Stacker PNXFESLS-0513 is a compact and efficient material handling solution designed for light-duty warehouse and industrial operations. With a lifting height of 1.3 meters and a load capacity of 500 kg, it ensures smooth and effortless handling of materials in confined spaces.

Equipped with a DC-powered drive and lift motor, this stacker offers stable performance and precise control, while the 15 Ah lithium battery provides long-lasting power with minimal maintenance. Its walking-type operation allows for easy maneuverability, making it ideal for tight storage areas and production environments.

Built with durability and operator convenience in mind, the PNXFESLS-0513 combines strength, reliability, and energy efficiency. It’s the perfect choice for warehouses, workshops, and small-scale industrial applications seeking a cost-effective and user-friendly stacking solution.

Specifications

  • Brand - Pronix
  • Type - Fully Electric Self-Loading Stacker
  • Model - PNXFESLS-0513
  • Capacity - 500 Kg
  • Load Center Distance - 500mm
  • Fork Outer Spacing - 685mm
  • Fork Length - 1195mm
  • Operation Type - Walking Type
  • Forward & Backward - Electric
  • Lifting Up & Down - Electric
  • Drive Wheel Size - Ø 250 x 74 mm
  • Load Wheel Size - Ø 80 x 60 mm
  • Middle Wheel - Ø 65 x 30 mm
  • Fork Lift Height - 1300mm
  • Fork Starting Height from the Ground - 81mm
  • Wheel Base - 974mm
  • Vehicle Length - 1650mm
  • Body Thickness - 409mm
  • Body Width - 658mm
  • Front Track - 518mm
  • Single Fork Width - 253mm
  • Minimum Turning Radius - 1173mm
  • Maximum Driving Speed (Turtle Speed) - 0.5 km/h
  • Maximum Driving Speed (Full Load) - 3.0 km/h
  • Motor - DC 0.6 kW
  • Lift Motor - DC 2.2 kW
  • Battery - Lithium Battery (48 V)
  • Battery Capacity - 15 Ah
  • Battery Weight - 5 Kg
  • Overall Weight (Include Battery) - 382 Kg

Description

  • Pronix Fully Electric Self Loading Stacker 500Kg with Lifting Height 1.3m PNXFESLS-0513 is a highly durable and powerful stacker suitable for various commercial purposes.
  • Its maximum load capacity of 500 Kg and load center distance of 500mm allows for efficient transportation of heavy materials.
  • It has an operating type of walking-type, drive wheel size of Ø 250 x 74 mm, load wheel size of Ø 80 x 60 mm, and a maximum driving speed of 3.0 km/h.
  • The stacker is powered by a DC 0.6 kW motor and a DC 2.2 kW lift motor and supports a lithium battery of 15 Ah.
  • The durable construction and lithium battery provide reliability and a weight of only 5kg.
  • This stacker is perfect for warehouses and factories.
