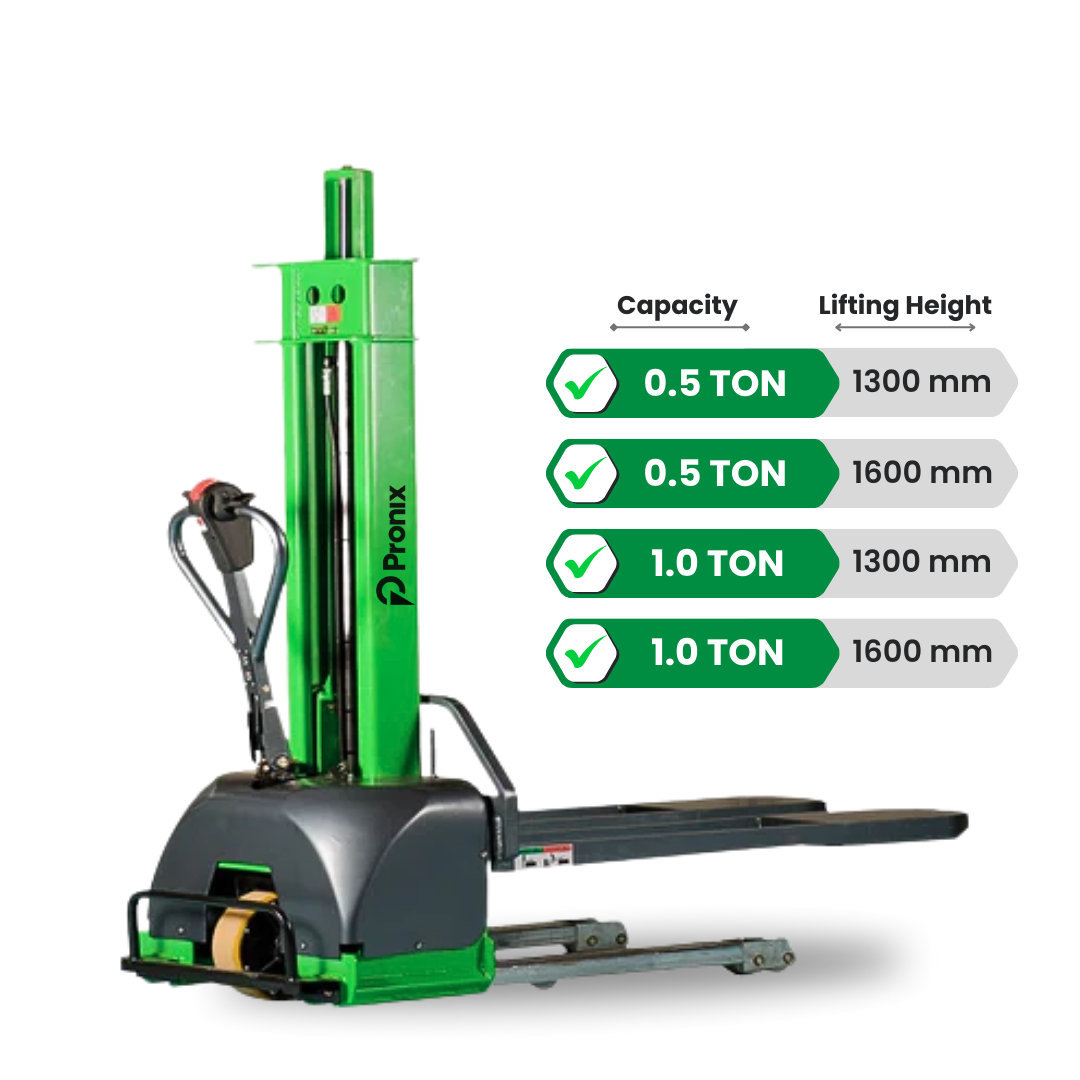

Self Loading All-in-One Stacker Fully Electric Lifting Capacity 1000Kg, 1.6m Lifting Height PNXFESLS-1016 - Pronix
The Pronix Fully Electric Self Loading Stacker PNXFESLS-1016 is a compact, efficient, and durable material handling solution designed to streamline warehouse and factory operations. Built with a 1000 kg load capacity and a lifting height of 1.6 meters, it ensures safe and effortless handling of goods in confined spaces.
Equipped with a powerful DC drive and lift motor, this electric stacker delivers smooth performance, reliable lifting, and precise control. The walking-type operation and optimized wheel configuration provide excellent stability and easy maneuverability, even in tight aisles or busy loading zones.
Powered by a long-lasting lithium battery, the PNXFESLS-1016 offers consistent energy efficiency, low maintenance, and minimal operating costs. Its rugged construction ensures long-term durability, making it a dependable choice for daily warehouse logistics and industrial applications.
Ideal for businesses seeking to enhance productivity while reducing manual effort, the Pronix Fully Electric Self Loading Stacker combines strength, safety, and energy efficiency in one compact solution.


Specifications
- Brand - Pronix
- Type - Fully Electric Self-Loading Stacker
- Model - PNXFESLS-1016
- Capacity - 1000 Kg
- Load Center Distance - 500mm
- Fork Outer Spacing - 685mm
- Fork Length - 1195mm

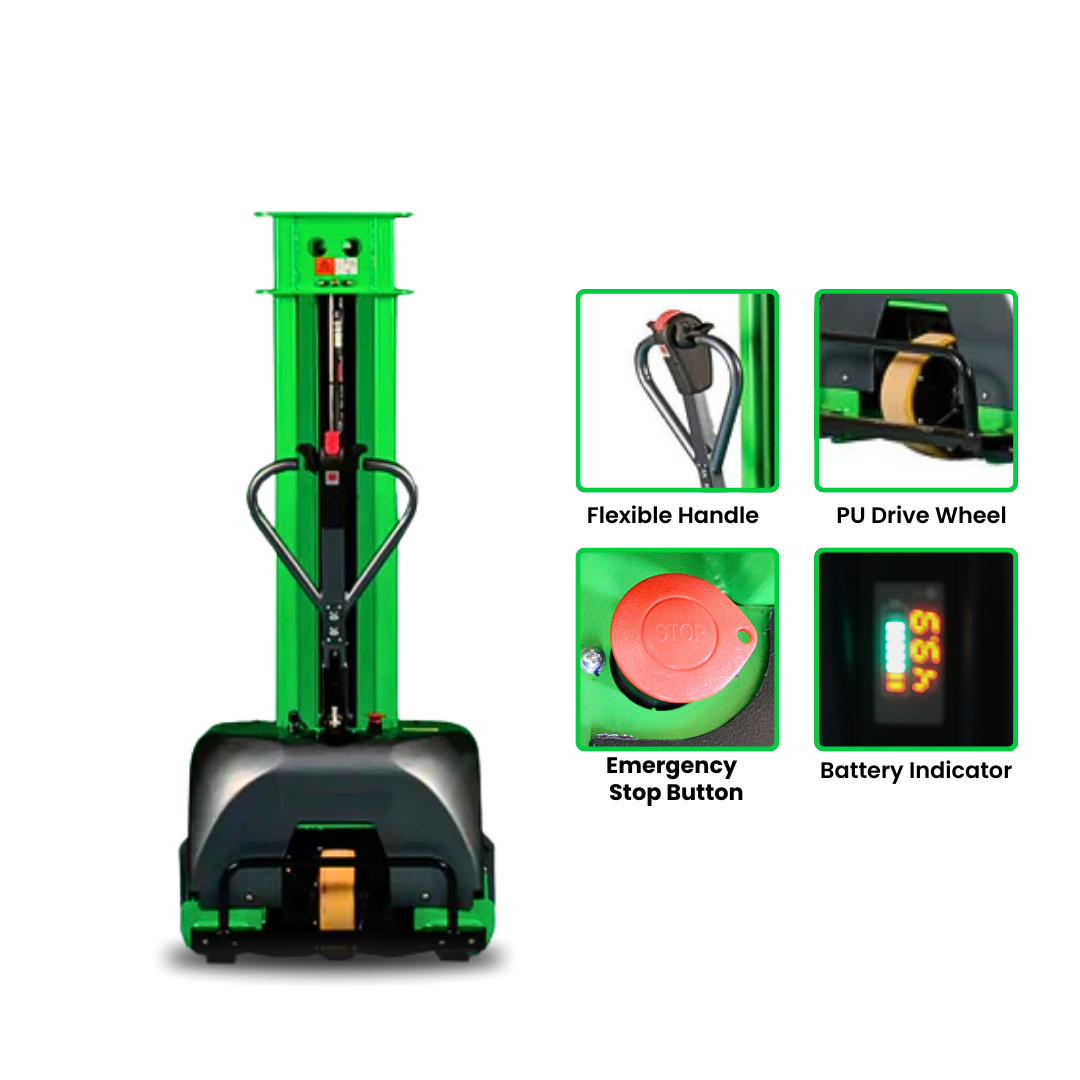

- Operation Type - Walking Type
- Forward & Backward - Electric
- Lifting Up & Down - Electric
- Drive Wheel Size - Ø 250 x 74 mm
- Load Wheel Size - Ø 80 x 60 mm
- Middle Wheel - Ø 65 x 30 mm
- Fork Lift Height - 1600mm
- Fork Starting Height from the Ground - 81mm
- Wheel Base - 974mm
- Vehicle Length - 1650mm
- Body Thickness - 409mm
- Body Width - 658mm
- Front Track - 518mm
- Single Fork Width - 253mm
- Minimum Turning Radius - 1173mm
- Maximum Driving Speed (Turtle Speed) - 0.5 km/h
- Maximum Driving Speed (Full Load) - 3.0 km/h
- Motor - DC 0.6 kW
- Lift Motor - DC 2.2 kW
- Battery - Lithium Battery (48 V)
- Battery Capacity - 15 Ah
- Battery Weight - 5 Kg
- Overall Weight (Include Battery) - 382 Kg
Description
- Pronix Fully Electric Self Loading Stacker 1000Kg with Lifting Height 1.6m PNXFESLS-1016 is a highly durable and powerful stacker suitable for various commercial purposes.
- Its maximum load capacity of 1000 Kg and load center distance of 500mm allows for efficient transportation of heavy materials.
- It has an operating type of walking-type, drive wheel size of Ø 250 x 74 mm, load wheel size of Ø 80 x 60 mm, and a maximum driving speed of 3.0 km/h.
- The stacker is powered by a DC 0.6 kW motor and a DC 2.2 kW lift motor and supports a lithium battery of 15 Ah.
- The durable construction and lithium battery provide reliability and a weight of only 5kg.
- This stacker is perfect for warehouses and factories.
