Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 500Kg, 1.3m Lifting Height PNXSESLS-0513 - Pronix

Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 500Kg, 1.3m Lifting Height PNXSESLS-0513 - Pronix

Back

Overview

Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 500Kg, 1.3m Lifting Height PNXSESLS-0513 - Pronix

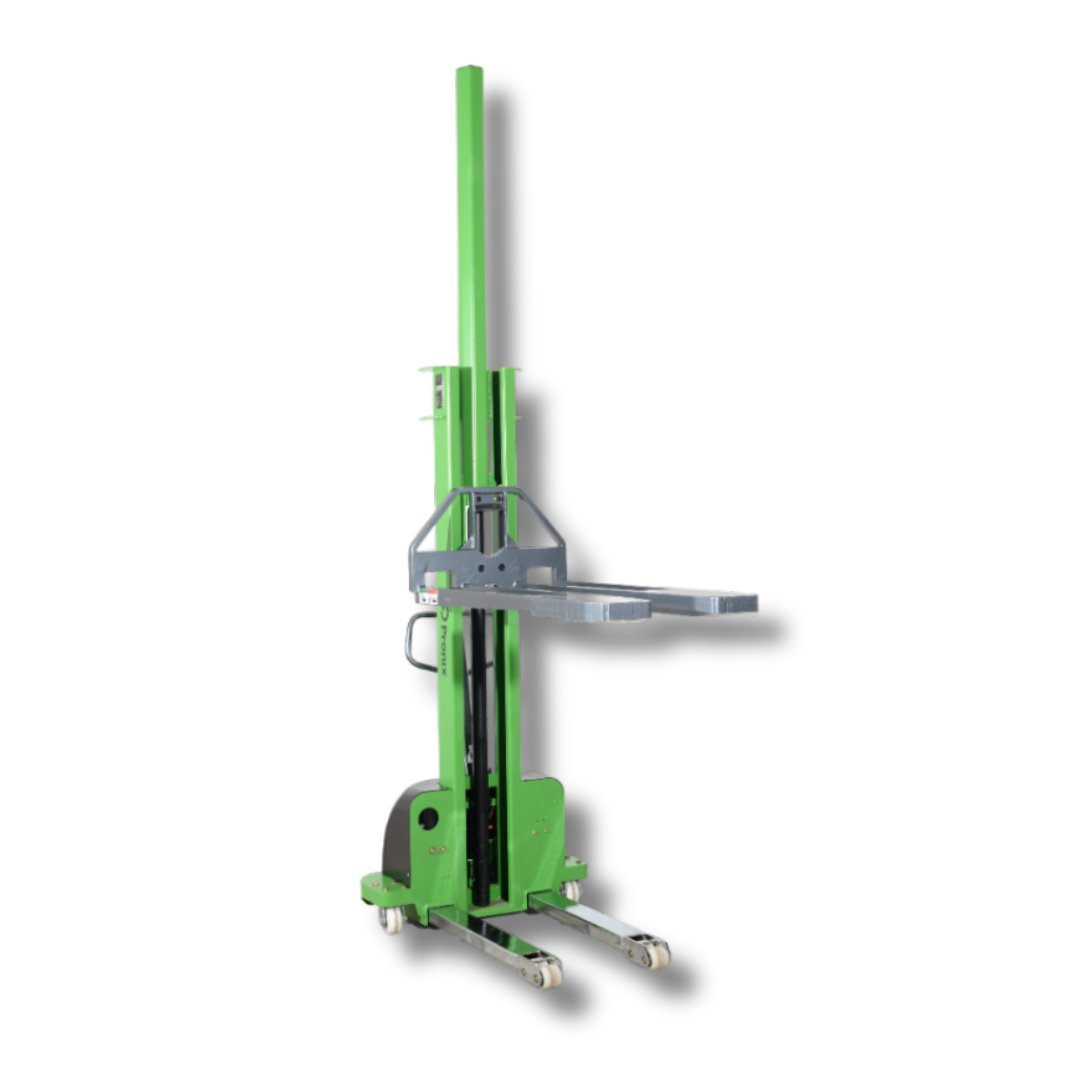

The Pronix Semi-Electric Self Loading Stacker PNXSESLS-0513 is an ideal material handling solution designed for compact spaces and light to medium-duty operations. With a load capacity of 500 kg and a lifting height of 1.3 meters, it provides smooth and reliable performance for everyday warehouse and industrial applications.

Powered by a 48V, 15Ah lithium battery and a 2.2 kW DC lift motor, this stacker ensures consistent lifting efficiency while minimizing operator fatigue. Its semi-electric operation combines manual control with powered lifting, delivering the perfect balance between performance and affordability.

Featuring a turning radius of 1173mm and wheelbase of 974mm, the PNXSESLS-0513 offers excellent maneuverability in narrow aisles. Built with robust construction and ergonomic design, it guarantees enhanced safety, efficiency, and operational comfort in your material handling tasks.

Specifications

  • Brand - Pronix
  • Type - Semi-Electric Self-Loading Stacker
  • Model - PNXSESLS-0513

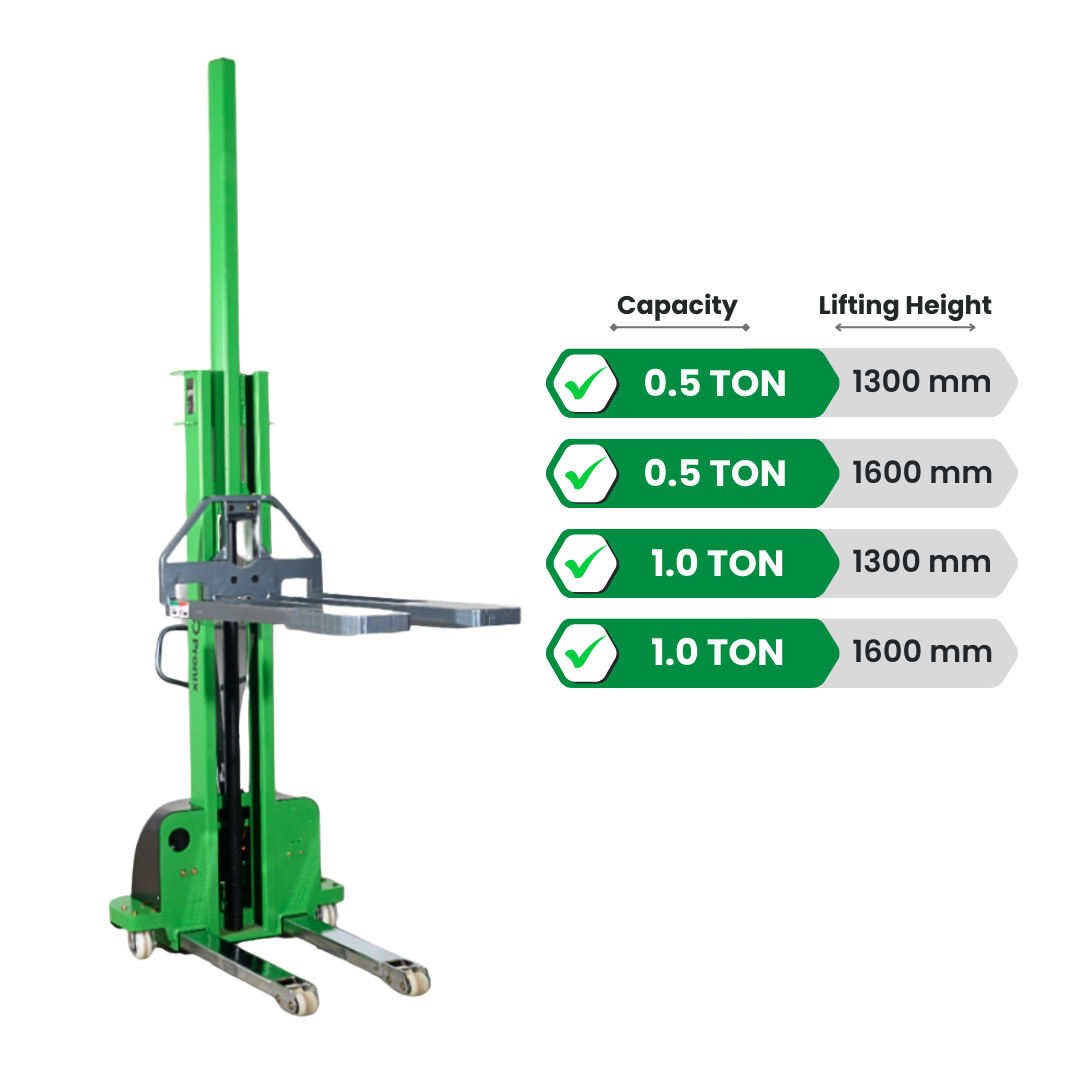

  • Capacity - 500 Kg
  • Load Center Distance - 500mm
  • Fork Outer Spacing - 685mm
  • Fork Length - 1195mm
  • Operation Type - Walking Type
  • Forward & Backward - Manual
  • Lifting Up & Down - Electric
  • Drive Wheel Size - Ø 250 x 74mm
  • Load Wheel Size - Ø 80 x 60 mm
  • Middle Wheel - Ø 65 x 30 mm
  • Fork Lift Height - 1300mm
  • Fork Starting Height from the Ground - 81mm
  • Wheel Base - 974mm
  • Vehicle Length - 1650mm
  • Body Thickness - 409mm
  • Body Width - 658mm
  • Front Track - 518mm
  • Single Fork Width - 253mm
  • Minimum Turning Radius - 1173mm
  • Maximum Driving Speed (Turtle Speed) - 0.5 km/h
  • Maximum Driving Speed (Full Load) - 3.0 km/h
  • Motor - DC 0.6 kW
  • Lift Motor - DC 2.2 kW
  • Battery - Lithium Battery (48 V)
  • Battery Capacity - 15 Ah
  • Battery Weight - 5 Kg
  • Overall Weight (Include Battery) - 382 Kg

Description

  • Pronix Semi-Electric Self Loading Stacker 500Kg (PNXSESLS-0513) is designed to provide safe, efficient, and ergonomic operation.
  • Robust construction and lithium-ion battery offer 500Kg capacity and a lifting height of 1.3m with a maximum driving speed of 3 km/h.
  • It has a capacity of 500 Kilograms and a lift motor of DC 2.2 kW powered by a 48 V Lithium battery with a 15 Ah capacity.
  • Its turning radius is 1173mm and maximum driving speed is 3 km/h. It has an overall weight of 382 Kg, including the battery.
  • Fork outer spacing of 685mm and a wheelbase of 974mm ensure maneuverability while a minimum turning radius of 1173mm allows the user to navigate narrow areas.
